A270 DSI IGNITION REPLACEMENT PARTS LIST

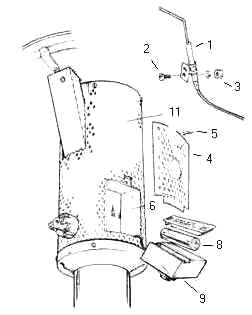

| 270 DSI Ignition Replacement Parts List | ||||
| Item | Part# | Description | Price | Diagram |
| 1 | 90065-2 | Electrode With Lead | 16.50 | |
| 2 | 70037 | Screw #8-32 x 3/8 | 0.10 | |
| 3 | 70038 | Nut #8-32 | 0.15 | |
| 4 | 30623-3 | Ignitor Cover | 9.00 | |
| 5 | 70072 | Screw #8-32 x 1/2 SS | ||
| 6 | 30623 | Bracket, A270 Ignitor | 6.50 | |
| 7* | 30629 | Plate, Ignitor Ground | ||
| 8 | 90072 | Battery, AA 1.5 Volt | ||
| 9 | 90071 | Ignitor, BP-E1 | 18.00 | |
| 10* | 70066 | Screw, #10-24 x 0.250L | ||
| 11 | 30204-5 | Cylinder, PH Perf SS | 27.00 | |
|
|
|
|
||
* Not Shown
