SUNGLO BURNER HEAD REPLACEMENT PARTS LIST

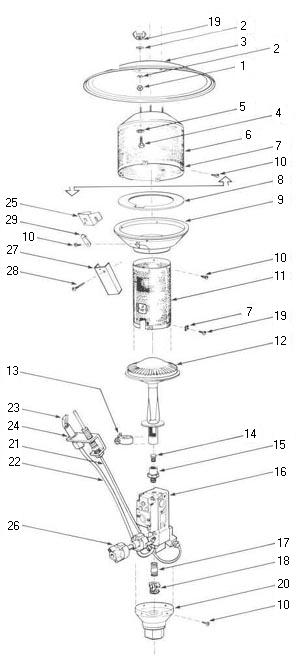

Sunglo Burner Head Components
Itm	Part#	Description	Price	Diagram
1	70017	Nut, 1/4-20 Hex SS	0.25
2	70024	Washer, 1/4 SAE SS	0.20
3	10261	Reflector, PH	68.00
4	70006	Bolt, 1/4x3/4 Hex SS	0.35
5	70033	Washer, 1/4 Inter SS	0.10
6	27006	PH Emitter Grid	95.00
7	70025-2	Clip, SS	0.60
8	30225	Shield, PH Heat	7.50
9	30202	Pan, PH Head	27.50
10	70005	Screw, #8x1/2 SP SS	0.20
11	30204-1	Cylinder PH Perf	26.00
12	27007	PH Burner	39.00
13	70030	Clamp, 1"	1.60
14	35001-31 35001-49	Orifice #39 Nat Ofiice #49 LP	1.90 1.90
15	35012	Adapter, Orifice 3/8	5.50
16	90002-2 90003-2 90004-2	Control 7000 Nat Control 7000 Nat 24V Control 7000 LP	110.00 110.00 110.00
17	80005-1	Nipple, 3/8 x 1 5/8	2.00
18	80025	Bushing 3/8x1/2	0.95
19	70065	Wing Nut, 1/4-20 SS	2.00
20	27018-1 27018-2	PH Head Base 24V PH Head Base	35.00 40.00
21	90031	Thermocouple T46518	8.50
22	80031	Tubing, AL 1/4x14"	1.25
23	90021 90022	Pilot, Nat #27919 Pilot, LP #27920	9.95 9.95
24	90015 90016	Nat Pilot Orifice LP Pilot Orifice	1.75 1.75
25	30258	PH Pilot Shield	5.00
26	27025	7000 Handle	7.75
27	30213	Channel, PH Pilot	5.00
28	70020	Screw, #10 x 1-1/4 SS	0.35
29	30299	Cover, PH Pilot Hole	0.40
30	80026	Tubing Fastener 1/4"	0.55
